AI Features - Connect your Azure OpenAI deployment to UpSlide

Avatar
Written by Lounis | Updated

This section is a step-by-step guide to deploying UpSlide's AI features on your Azure tenant.

Introduction to UpSlide's AI features

The Glossary, powered by Azure OpenAI, will automatically detect abbreviations used in a PowerPoint presentation and create an automatic, pre-formatted and alphabetically ordered glossary with those abbreviations and the associated definitions found by the AI.

Azure requirements

This feature requires to be set up on Azure. If your company doesn’t use it, the AI features will not be available.

UpSlide requirements

  • Using UpSlide version 6.9.18 and above.
  • Auto-update is turned ON, and users are using the latest version.

Set up the AI features

Components

To set up the Azure OpenAI service, you need to create the necessary components, existing or new, on the Azure tenant:

  • A resource group to manage multiple Azure resources collectively.
  • OpenAI cognitive service to manage AI models.
  • OpenAI cognitive service deployment, the AI model itself. Eligible models are GPT-4, GPT-4o and GPT-4o mini
  • An UpSlide app registration, to register UpSlide as an application on your tenant
    • App permission (delegated: user_impersonation) to allow the application to use AI resources in the user's name.
    • Public client authentication with redirect URI, to allow a user to authenticate from within the application.
    • Service principal to provide the application with an identity on Entra ID.
  • A role assignment called Cognitive Services User, the role that will be assigned to users of an Azure OpenAI service to allow them to use the AI models.
Tip:
You can reach out to support@upslide.net to ask for assistance while deploying your Azure OpenAI.

Create a resource group

On the Azure Portal, navigate to Resource groups and click Create.

Resource groups.png

Complete the form and confirm creation. The values you pick during this step will not influence how UpSlide's AI features work.

Create an Azure OpenAI service

In the Azure Portal, navigate to Azure OpenAI to create a new Azure OpenAI service.

  • In Resource group select the group created in the previous step.
  • The Region field refers to where the service will be hosted. Different models will be available depending on the region selected. It does not have to match the resource group’s region. We recommend using Sweden Central and East US for the widest range of available models. Please refer to this page for model availability by region.

Fill out the rest of the form by using the configurations that satisfy your security policies.

OpenAI Service.png



Create a deployment for the service

On the Azure OpenAI page, click on the service you just created and Go to Azure AI Foundry portal.

Go to Foundry.png

From the Deployments tab, deploy a new base model. UpSlide is compatible with GPT models. If you cannot find the model you want, then you might want to check if that model is available in your Azure OpenAI service's region. If not, you should start over at step 2 and choose another region.




We recommend using Global Standard as the Deployment type as it provides the highest rate limits. The actual capacity is determined by your subscription.

Edit your deployment to ensure the Tokens per Minute Rate Limit slider is at the max. Raising the limit is necessary to avoid throttling when using our AI features, but this is not a big risk in terms of safeguarding consumption.

Note:
Your consumption monitoring is visible on the OpenAI Service page but you won't be able to see it for each individual deployment.

Once the deployment is created, copy the Endpoint's Target URI and save it for later.

Setup an app registration

In the Azure Portal, navigate to App registrations and click New registration.

Set a name and click Register. Once the app registration is created, copy the Application (client) ID and the Directory (tenant) ID and save them for later.

App registration.png

Then, navigate to Manage > Authentication and click Add a platform. Select Mobile and desktop applications.

Mobile and desktop.png

Add the following Custom redirect URIs and replace {clientID} with the Application (client) ID you copied during the app registration step:

ms-appx-web://Microsoft.AAD.BrokerPlugin/{clientID}

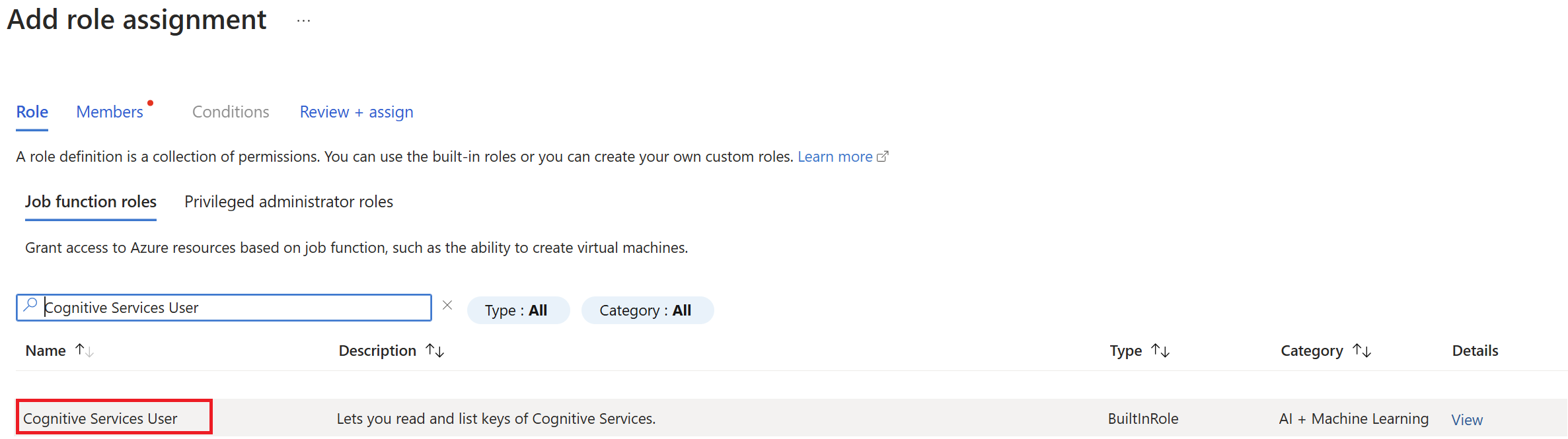

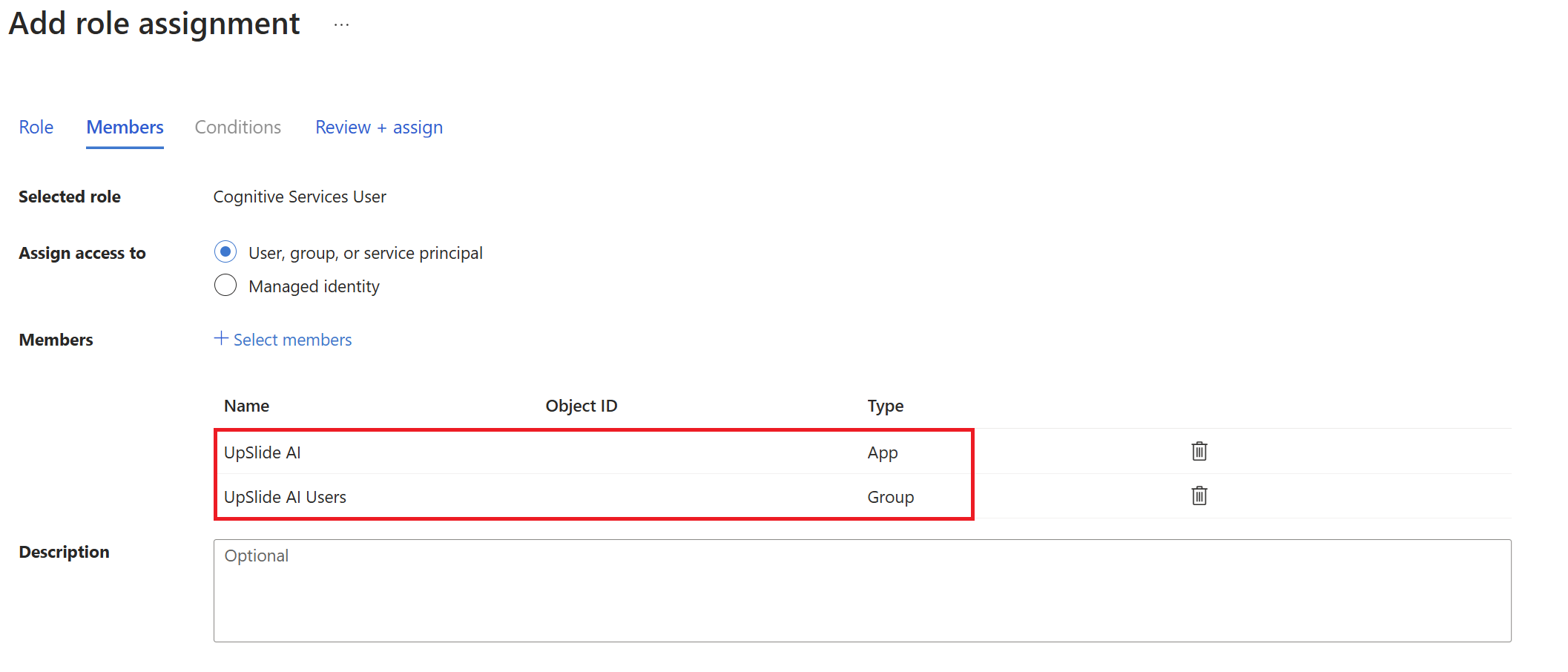

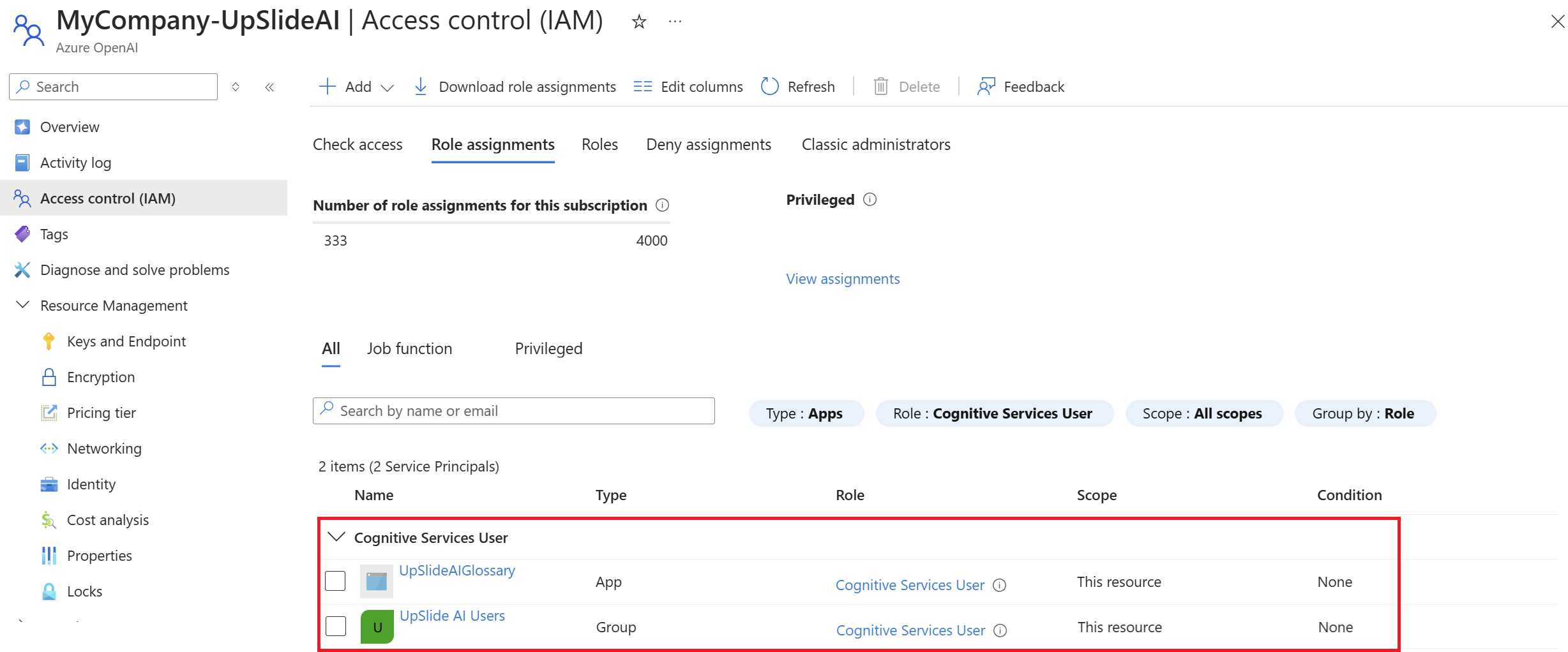

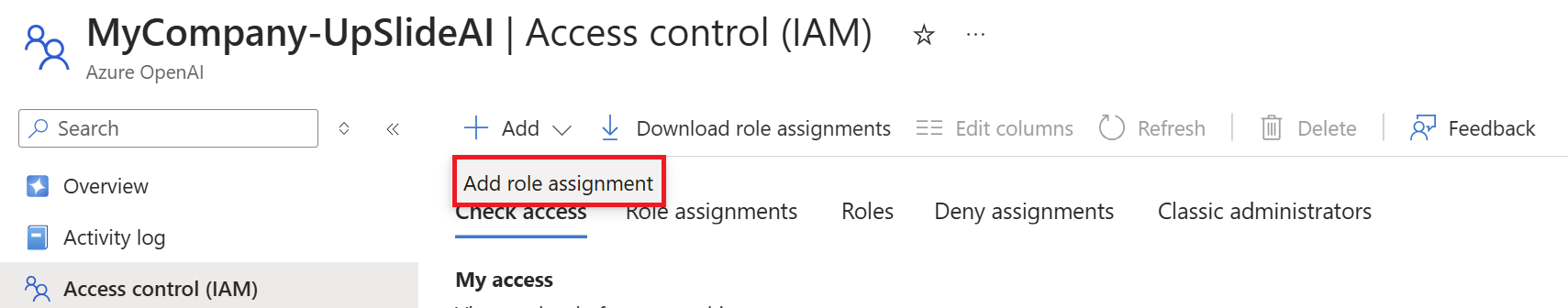

Create a role assignment

Still under the Manage menu, click API permissions, then Add a permission. In the Request API permissions menu, select the APIs my organization uses tab and search for Microsoft Cognitive Services.

API Permissions.png

There, select and add the user_impersonation permission.

Add API Permission.png

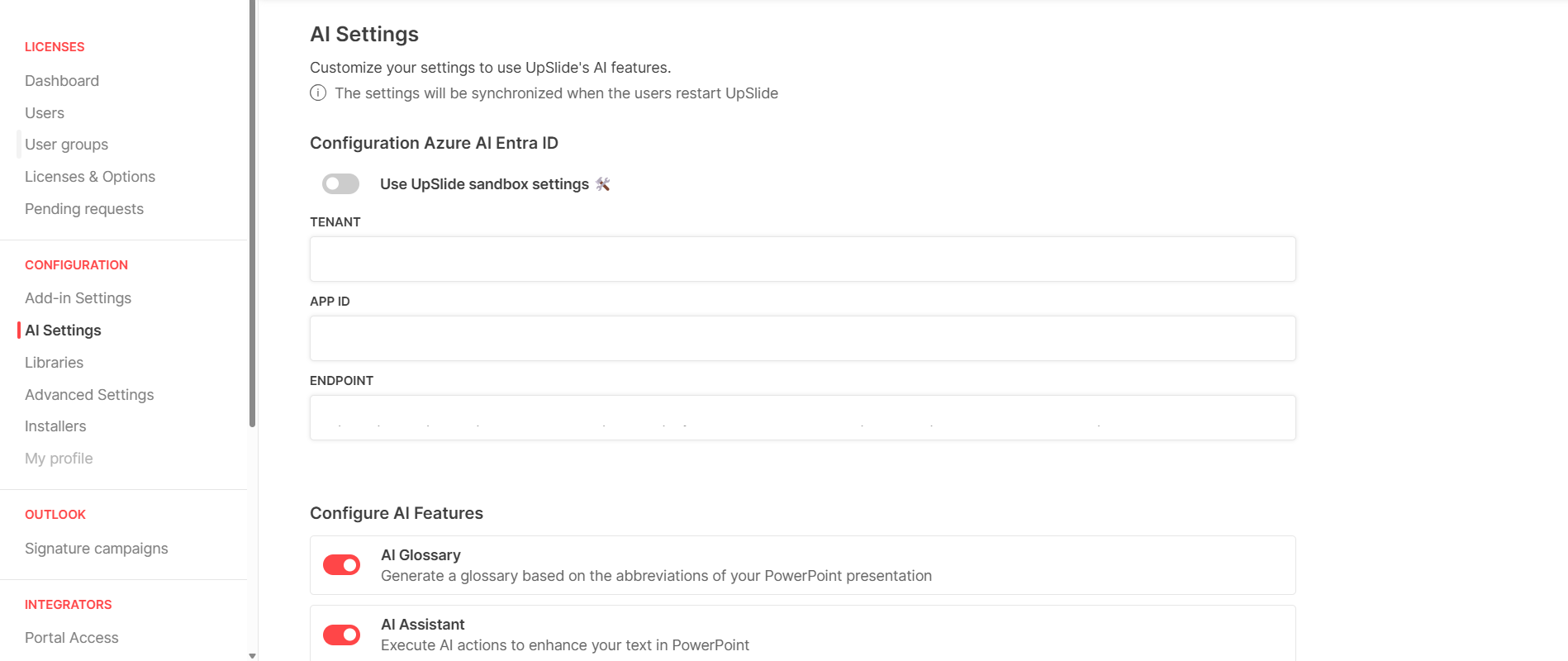

To configure the link between UpSlide and your AI model, send your tenant name, app ID, and endpoint URL to support@upslide.net.

Provide the AI Glossary option to UpSlide users

When the AI Glossary option is available on your account, you will see it on your dashboard in the UpSlide portal.

Portal dashboard AI Glossary option.png

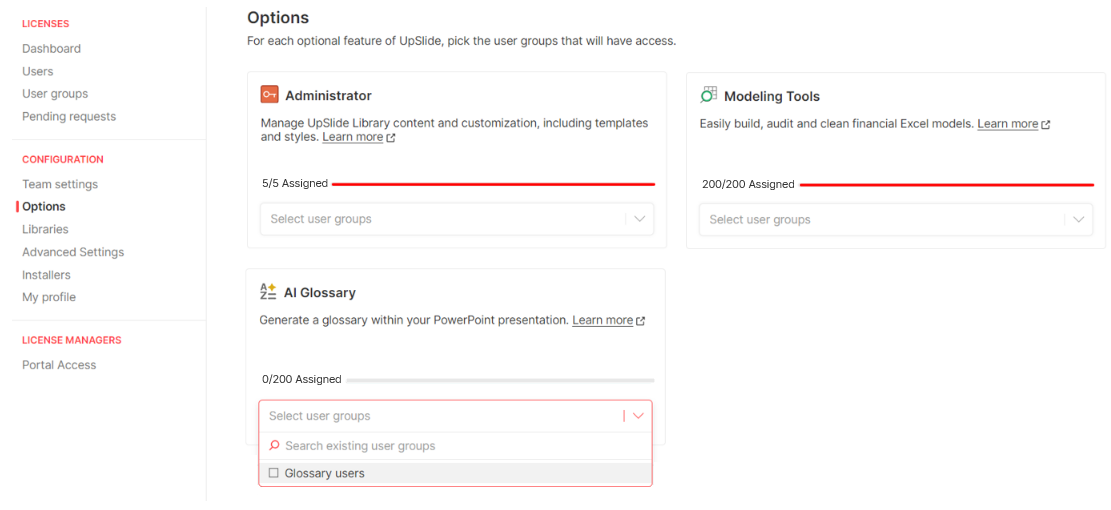

You can manually assign the option to specific users in the Users tab or assign the option to a specific user group in the Options tab.

Portal options AI Glossary.png
